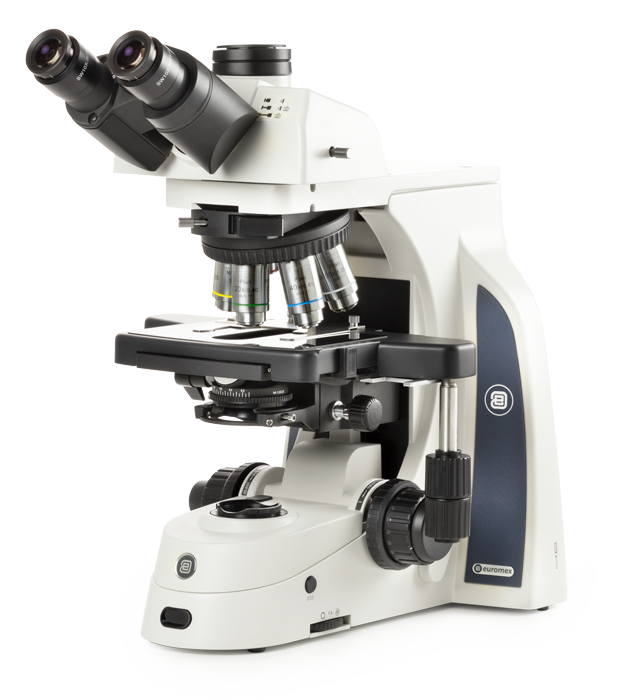

Delphi-X Observer DX.1156-APLi/2 Multi-Head Microscope for 2 Observers

Delphi-X Observer

The DX.1156-APLi/2 is the multi-head system in the Delphi-X Observer series that allows two people to view the same slide sitting side by side, with one trinocular head and one binocular head. It is fitted with APLi plan semi-apochromatic objectives from 4x to 100x oil and SWF 10x eyepieces with a 25 mm field of view, a combination designed for teaching, joint consultation and pathology. The iCare sensor switches the light off when the user moves away from the workstation.

Technical specifications

• Side-by-side multi-head system for 2 observers
• One trinocular head and one binocular head, with Ø 30 mm tubes inclined at 30° and SWF 10x/25 mm eyepieces
• Interpupillary distance from 47 to 78 mm with dioptre adjustment on both eyepieces
• Inverted sextuple nosepiece on bearings
• IOS plan semi-apochromatic objectives 4x/0.13, 10x/0.30, 20x/0.50, S40x/0.75 and S100x/1.30 oil immersion, EIS 60 mm parfocal, M25 thread
• Optics with anti-fungus and anti-reflective coating for maximum light transmission
• 190 x 152 mm stage with integrated 80 x 54 mm mechanical stage and scratch-resistant Gorilla™ glass
• Height-adjustable swing-out Abbe condenser, N.A. 0.90/1.25, with engraved numerical apertures
• Coaxial coarse and fine focusing: 100 divisions, 1 µm precision, 0.1 mm per rotation and a total travel of approx. 35 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Adjustable 3 W NeoLED transmitted illumination, with internal 100-240 V power supply (CE)
• iCare sensor: the illumination switches off automatically when the user moves away from the microscope, saving energy
• Carrying handle at the back and Allen key in an integrated holder
• Includes power cable, spare 500 mA 250 V fuse, 5 ml of immersion oil, dust cover and user manual, in a cardboard box
